ILLUCO

Loupes / IAL Series

Ergo X flip-up Loupes

Ergonomic precision with easy, personalized adjustments ILLUCO’s Angled Flip-Up Loupes combine ergonomic angled optics with effortless user adjustments. You can easily adjust them to fit your personal posture and preference. This design supports a natural neck position while providing clear, detailed vision. Compatible with ILLUCO headlights, these loupes offer comfort, precision, and flexibility for long procedure.

download catalog download catalog

Ideal Posture

Ergo X is carefully designed to support an ideal posture, helping to reduce neck and back strain and allowing you to work longer, with greater ease.

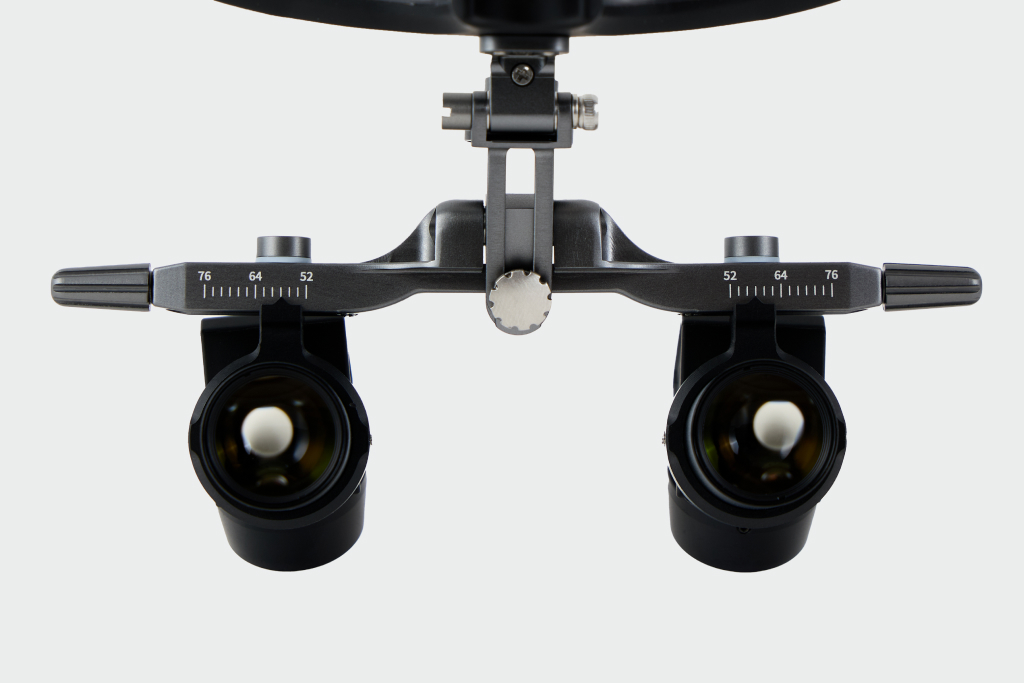

Precise PD adjustment

Discover effortless precision with Illuco’s loupes, featuring easy pupillary-distance customization. The built-in PD ruler allows for precise, measurement-based alignment—ensuring a perfect fit, enhanced comfort, and reduced eye strain.

Optimized Field & Depth

A wide field of view and excellent depth of field provide sharp, clear images across a greater range at your preferred working distance.

Ready-made

They are manufactured in the most commonly used working distances proven in clinical practice (45, 50, 55, 60cm), allowing users to choose the model that best suits their personal working distance. This ready-made feature ensures that your loupes are always prepared for immediate use, enhancing efficiency and flexibility in any setting. If needed, users can visit an optician to have prescription lenses inserted.

DETAILS

SPECIFICATION

Model Style Magnification Field of View (cm, @45cm) Depth of Field (cm) Working Distance (cm) Resolution (lp/mm) Weight w/o frame (g) Adjustable PD (mm)
IAL-1030F Angled flip-up 3.0x 10.5 11 45, 50, 55, 60 28 62.7 52 ~ 76
IAL-1040F Angled flip-up 4.0x 9 10 34 63.7
IAL-1055F Angled flip-up 5.5x 7.5 7 40 82.7
