Dental Mirrors / IDM Series

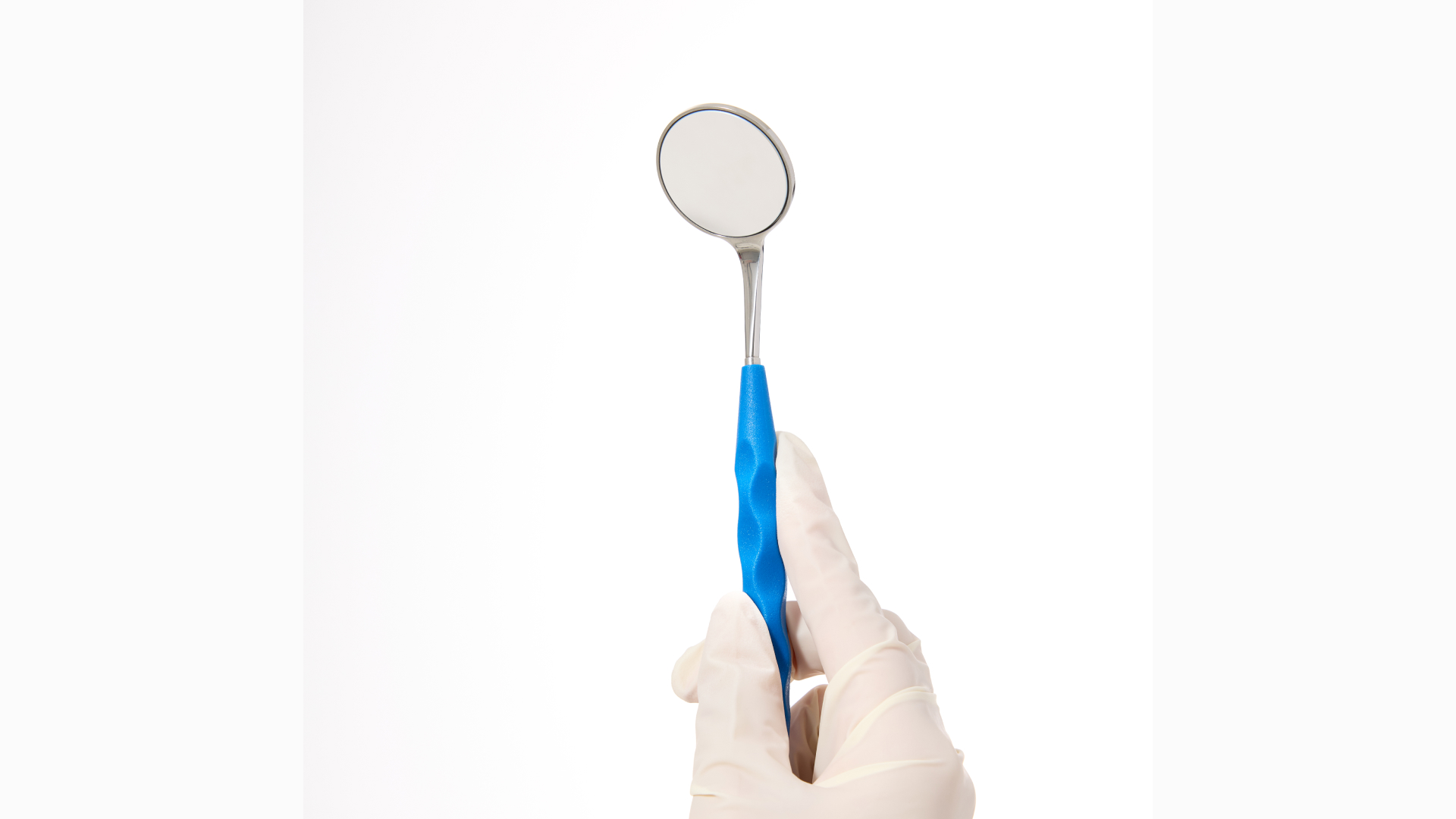

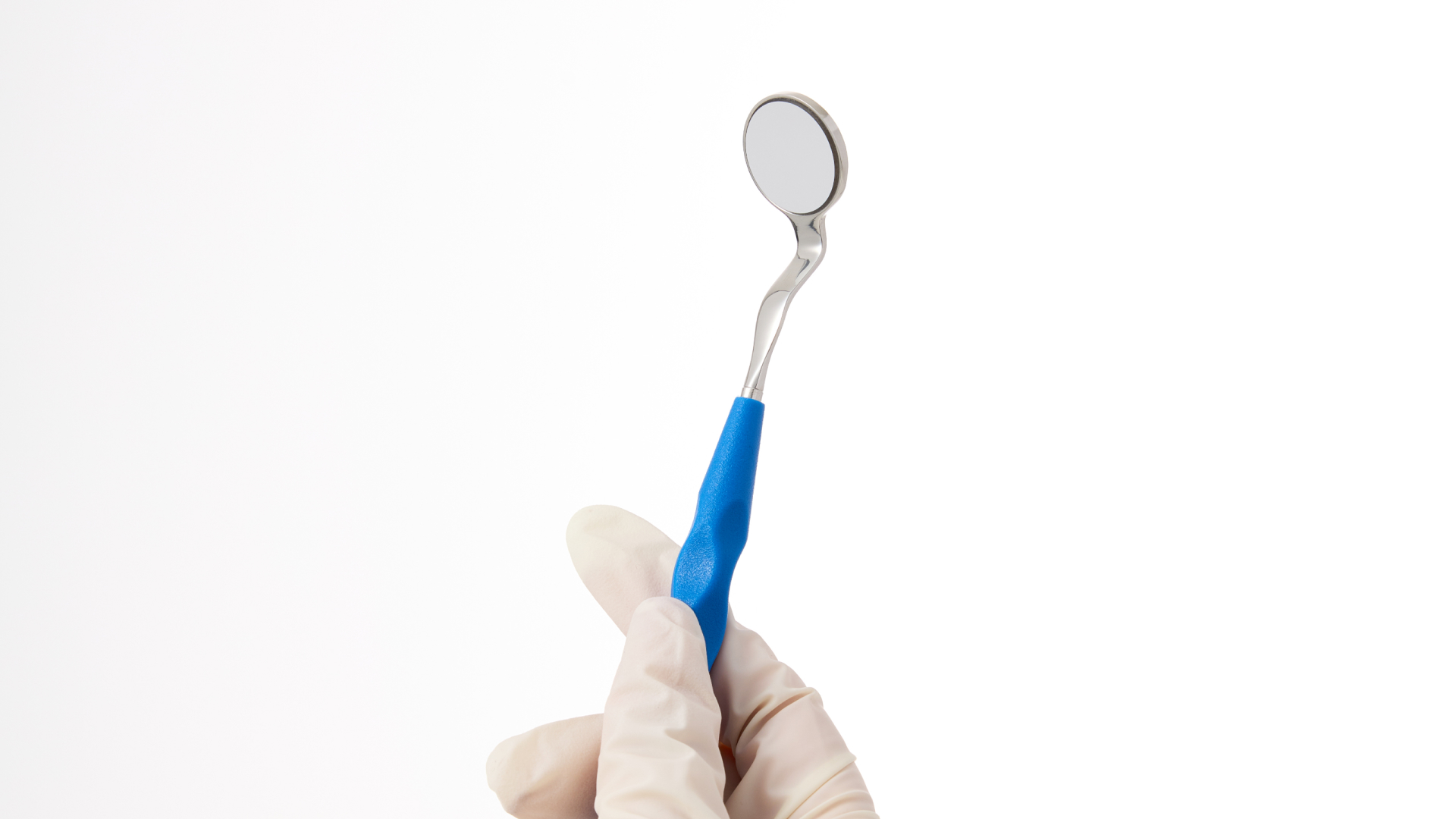

DENTAL MIRROR

Crystal-Clear Reflection. Precision You Can Hold. The IDM-Series Dental Mirror features a premium dielectric-coated front surface and waterproof back for durability. Its one-piece head design ensures stable handling. Compare IDM’s brilliant reflectivity and superior water-repellent performance and discover why no other mirror comes close.

download catalog download catalog

See the magnification difference.

1X

2X

3X

Unmatched Brightness and Clarity with 99% Reflectivity

IDM mirrors feature a high-reflectivity dielectric coating with 99% reflectivity, delivering brighter visuals and true-color clarity. Experience clearer, more vivid intraoral views with every use.

Superior Water-Repellent and Autoclavable Performance

IDM mirrors are built with water-repellent functionality and are autoclavable for up to 100 cycles, ensuring durability in demanding clinical environments.

Ergonomic Design for Comfort and Precision

With an ergonomic body design and non-slip grip, IDM mirrors ensure stable handling during use. Their design prevents unnecessary rotation or movement, providing comfort and precision even during prolonged procedures.

Tailored for the Way You Practice

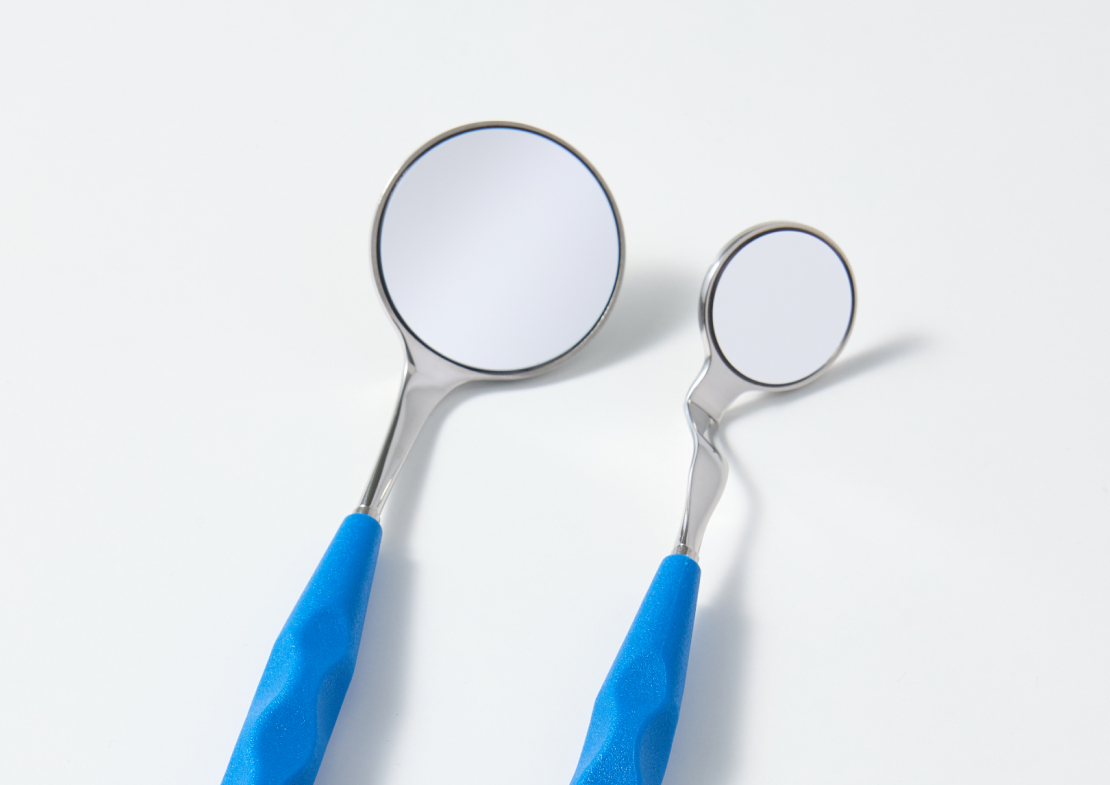

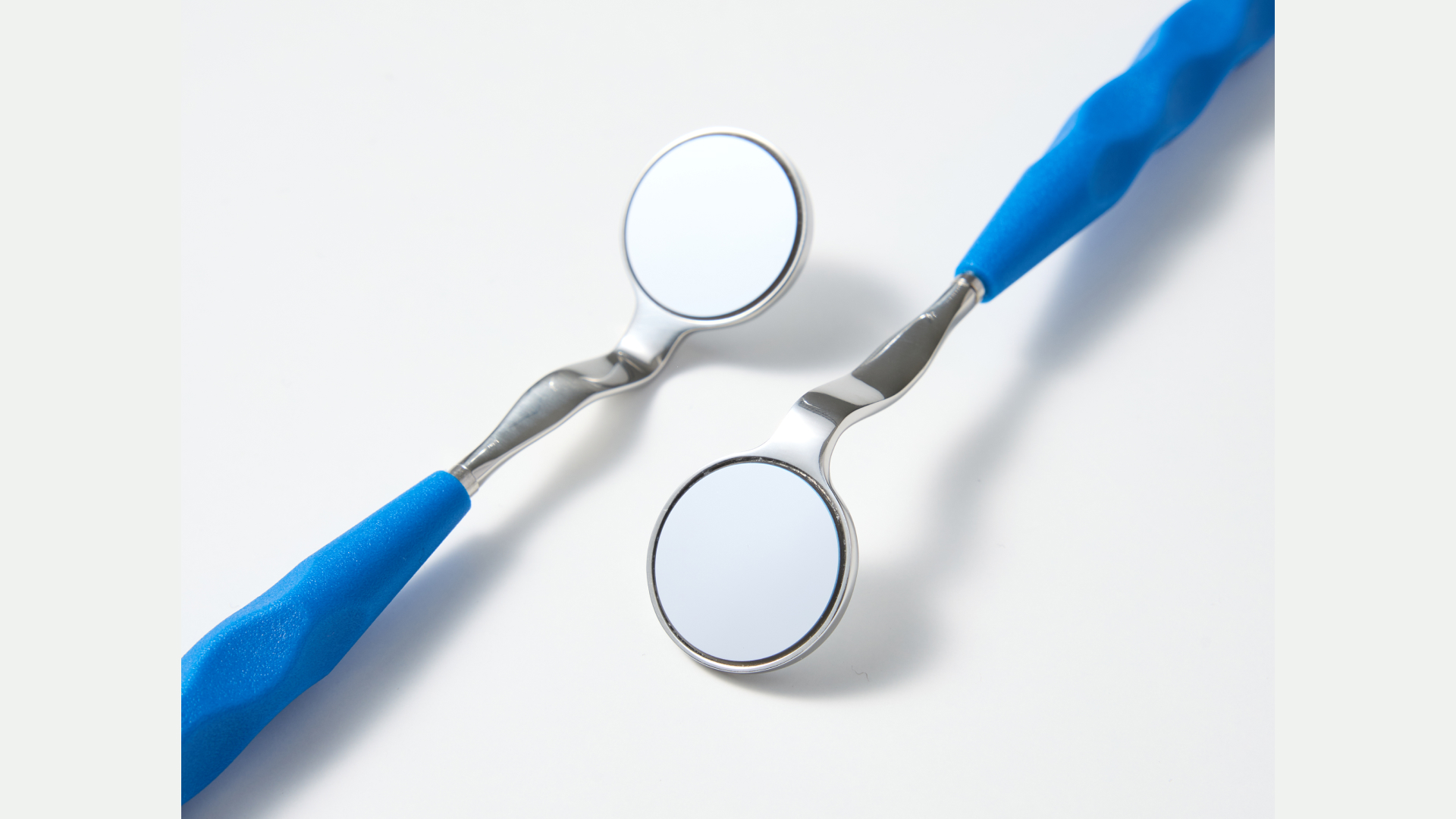

With a range of mirror sizes, magnifications, and designs, IDM mirrors support a variety of clinical needs and preferences. From the standard Dental Mirror to the new Grand Mirror (Size 10, Ø34 mm) and Double-Sided Mirror. Whatever your clinical style, there's an IDM mirror designed to fit your workflow.

DETAILS

MODEL

Model Mirror Type Head Size Magnification
IDM-2C41 Standard Mirror No.4 (Ø 22) 1×
IDM-2C42 Standard Mirror No.4 (Ø 22) 2×
IDM-2C43 Standard Mirror No.4 (Ø 22) 3×
IDM-2CD41 Double-Sided Mirror No.4 (Ø 22) 1×
IDM-2C101 Grand Mirror No.10 (Ø 34) 1×
IDM-2C102 Grand Mirror No.10 (Ø 34) 2×

SPECIFICATION

Item Specification
Mirror Surface Type Dielectric-coated front surface
Color Dark Blue / Light Blue
Reflectivity 99% high-reflectivity
Mirror Material Optical glass
Water Repellency Water-repellent coated; resists fog
Mirror Size Size 4 / Ø 22 mm, Size 10 / Ø 34 mm

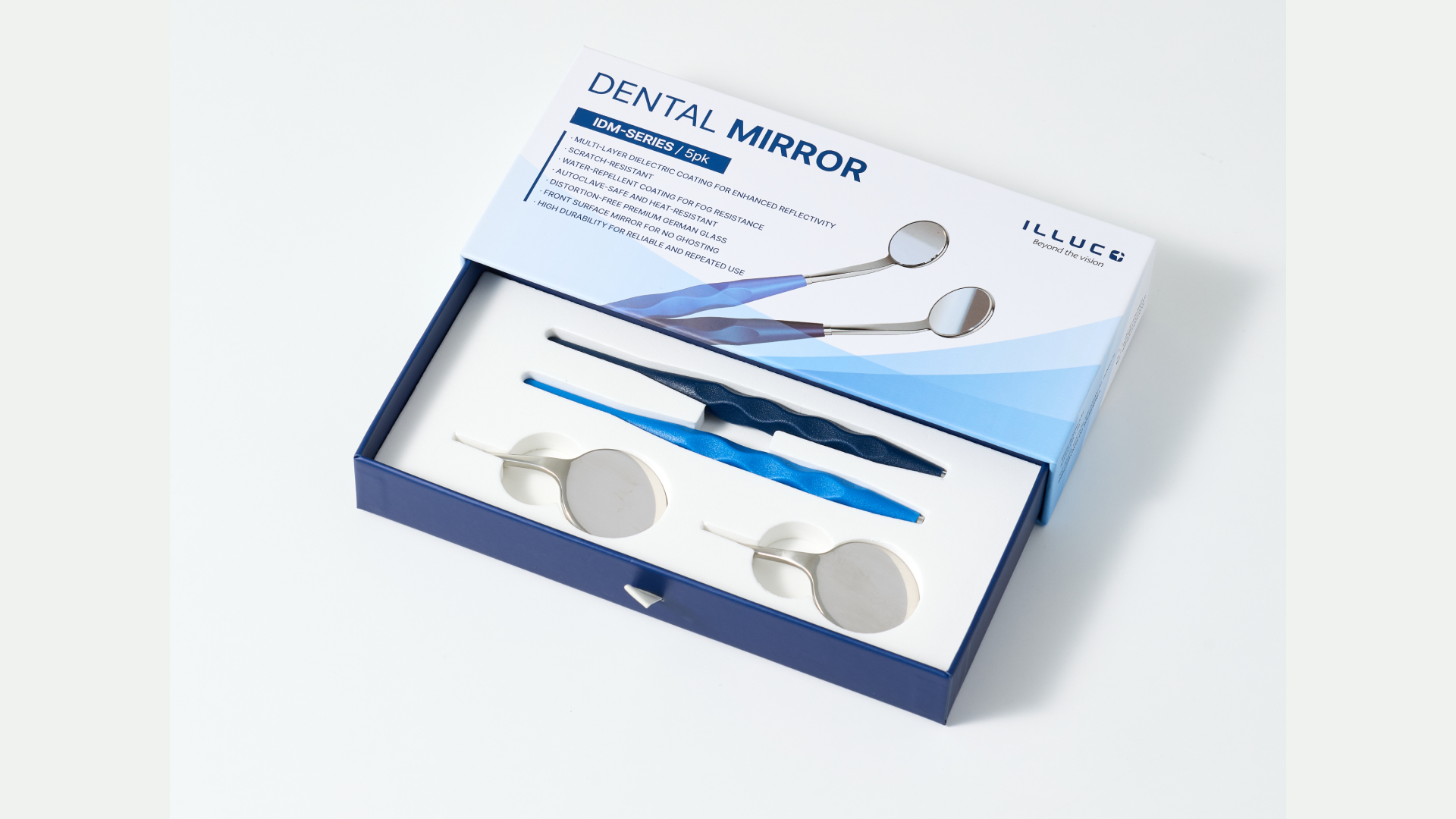

Packaging Ø22: 5 units per box / Ø34: 2 units per box
Mirror Head Only Option Available (sold separately)
Magnification Options 1x, 2x, 3x
Autoclavability Autoclavable up to 100 cycles
Autoclaving Guidelines - 5 minutes at 273°F (134°C)
- 20 minutes at 250°F (121°C)
- Do not exceed 277°F (136°C) to prevent damage.
