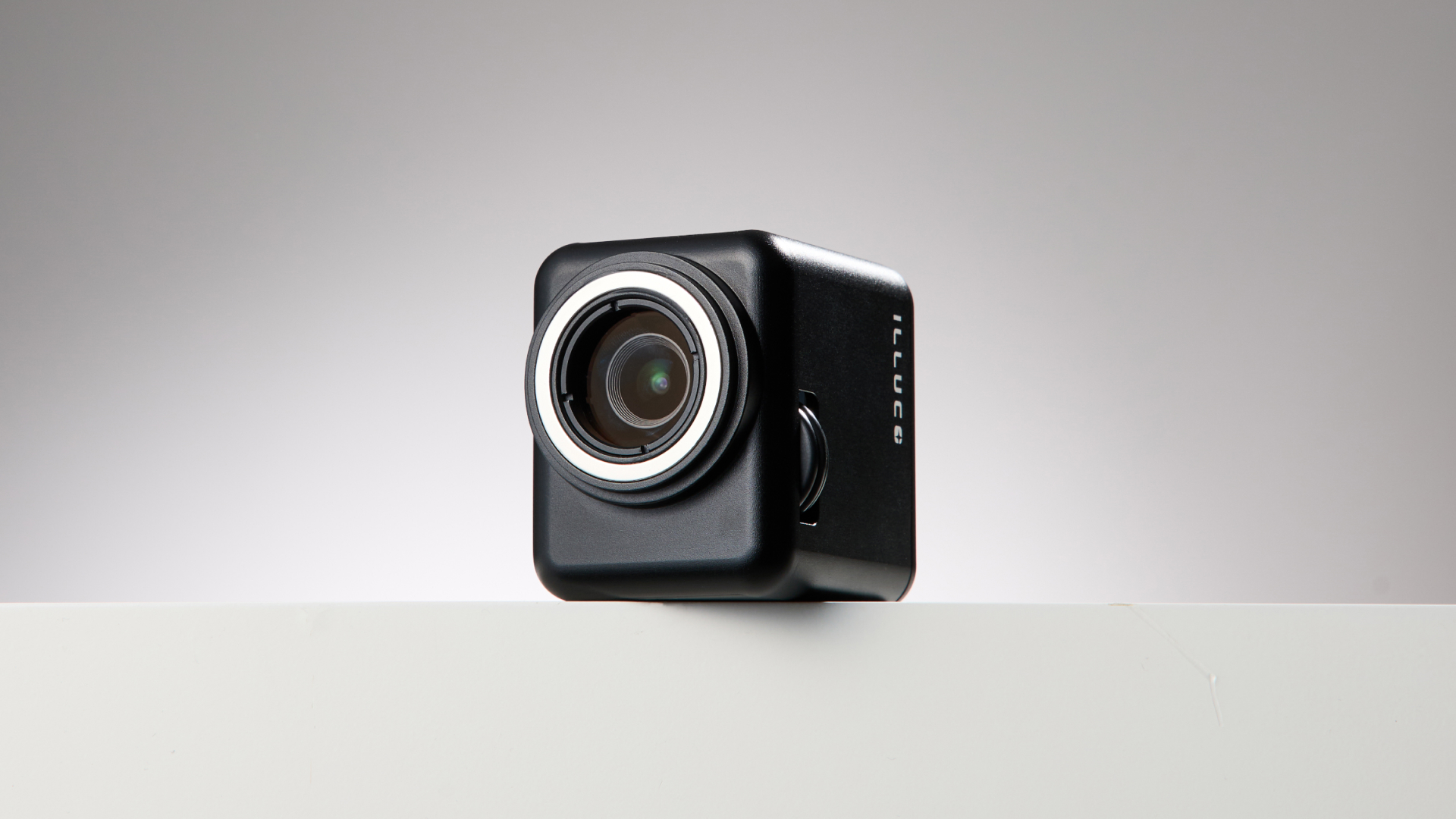

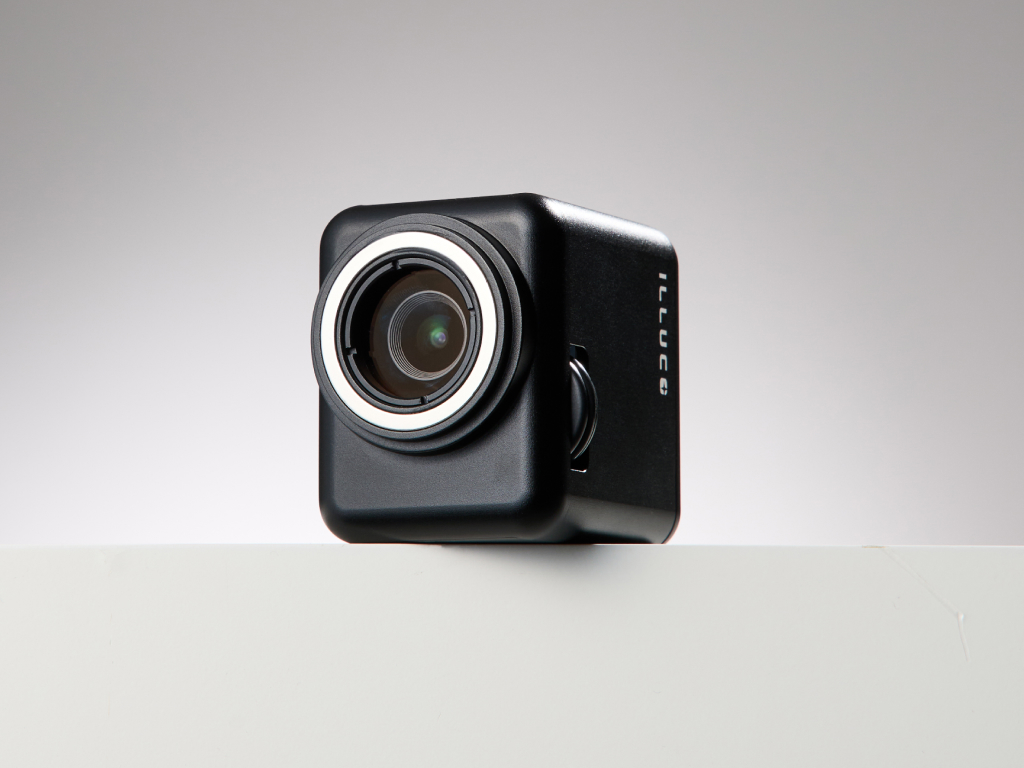

IDC-1 Imaging Camera

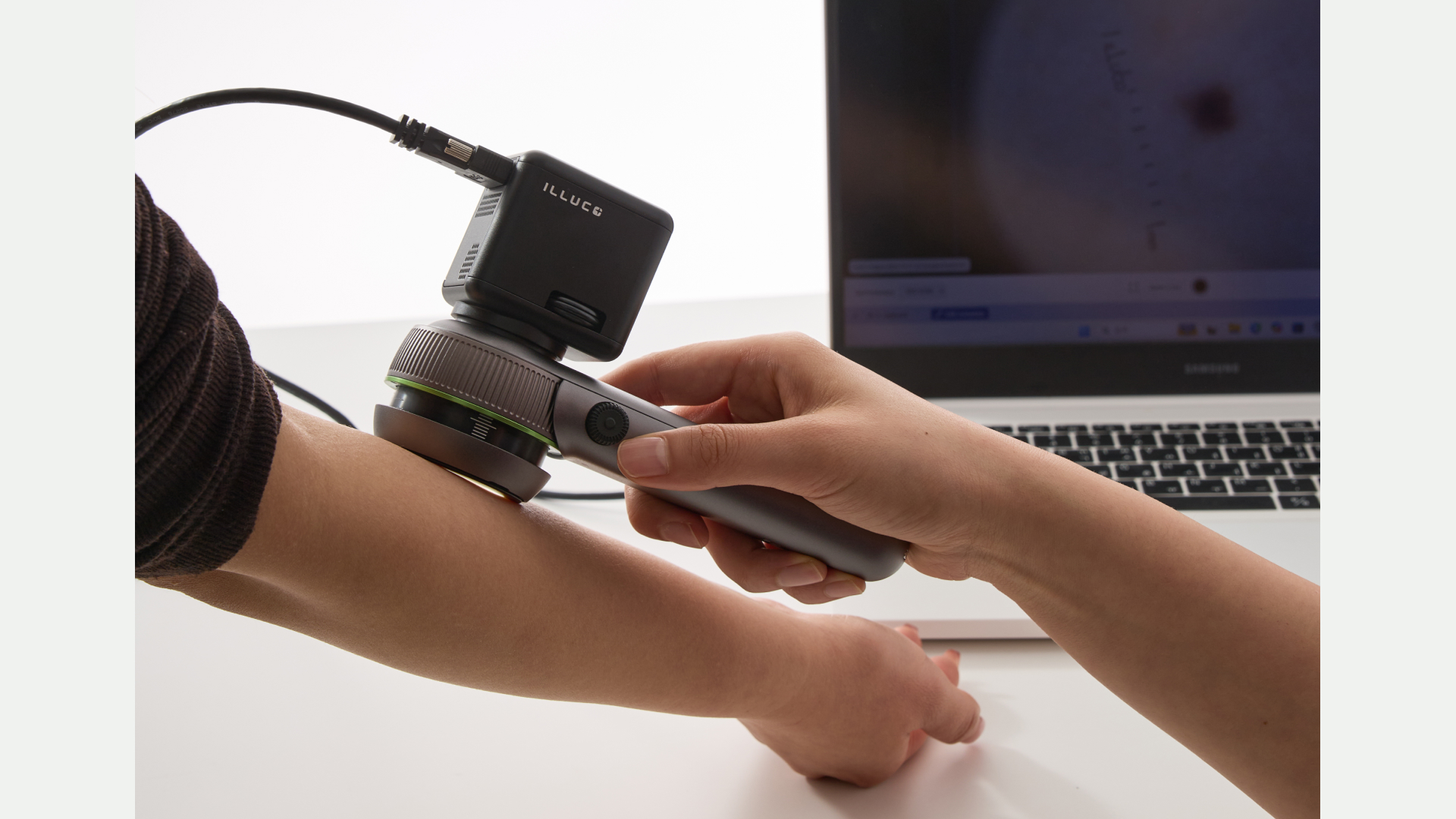

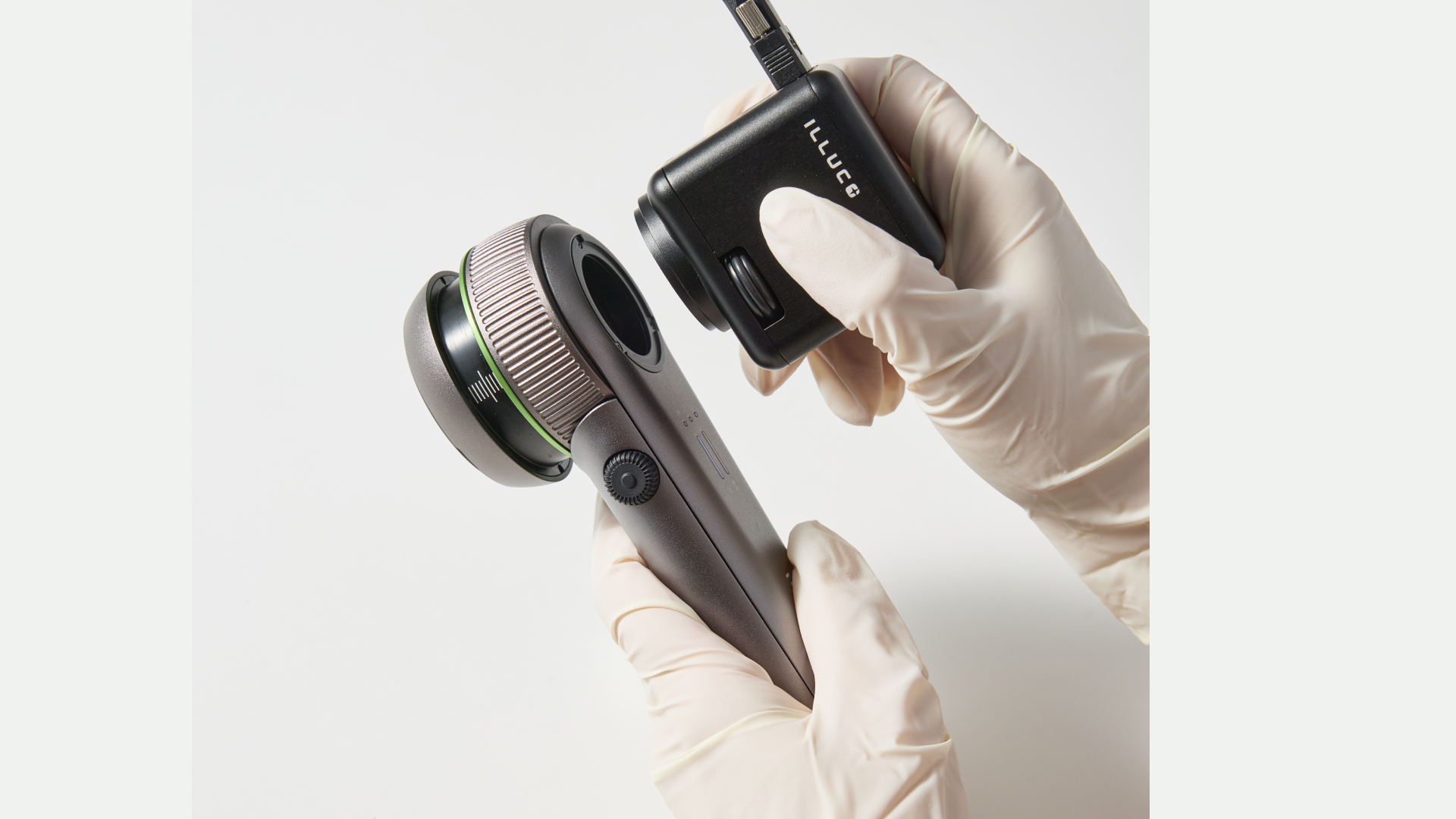

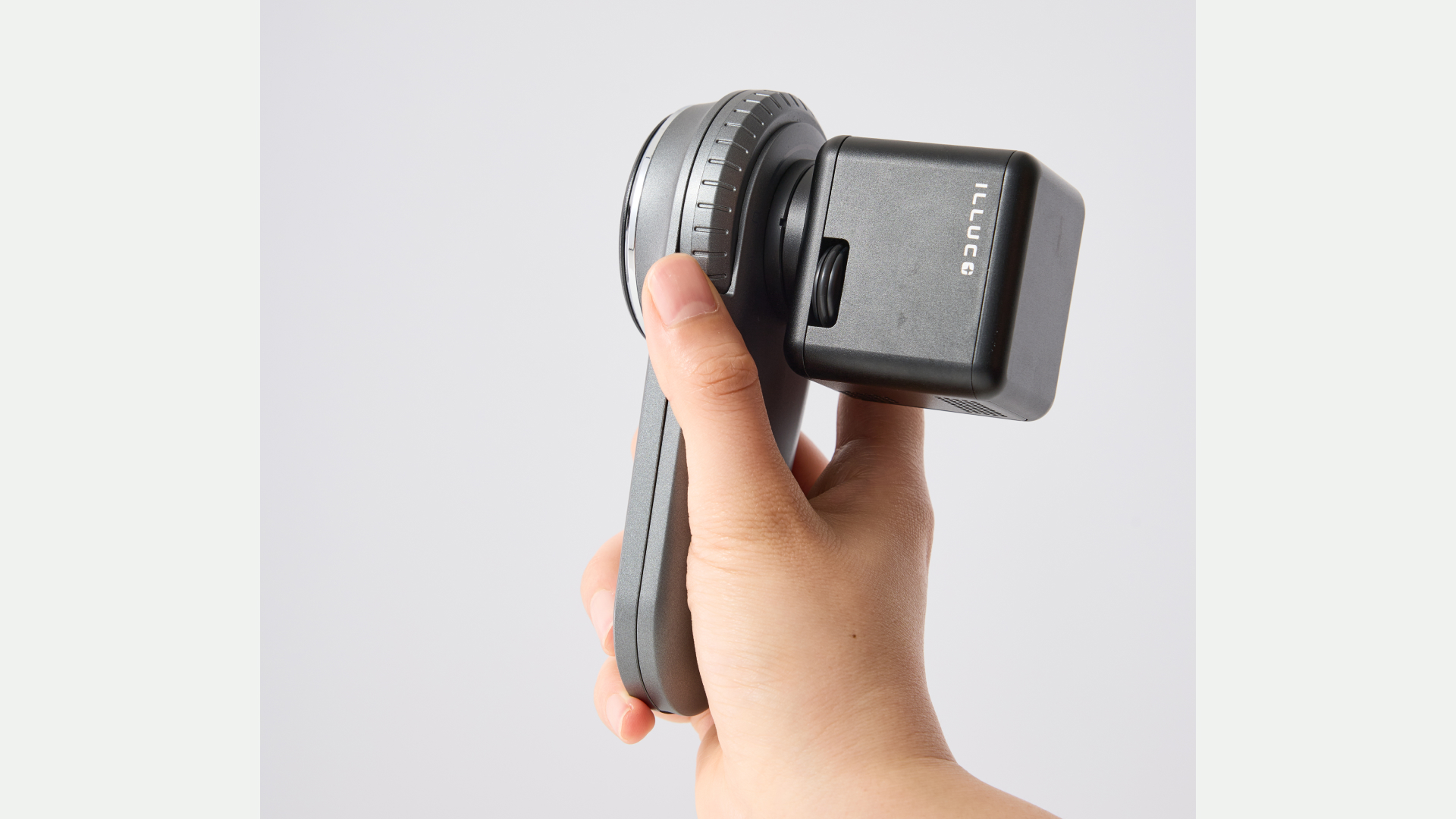

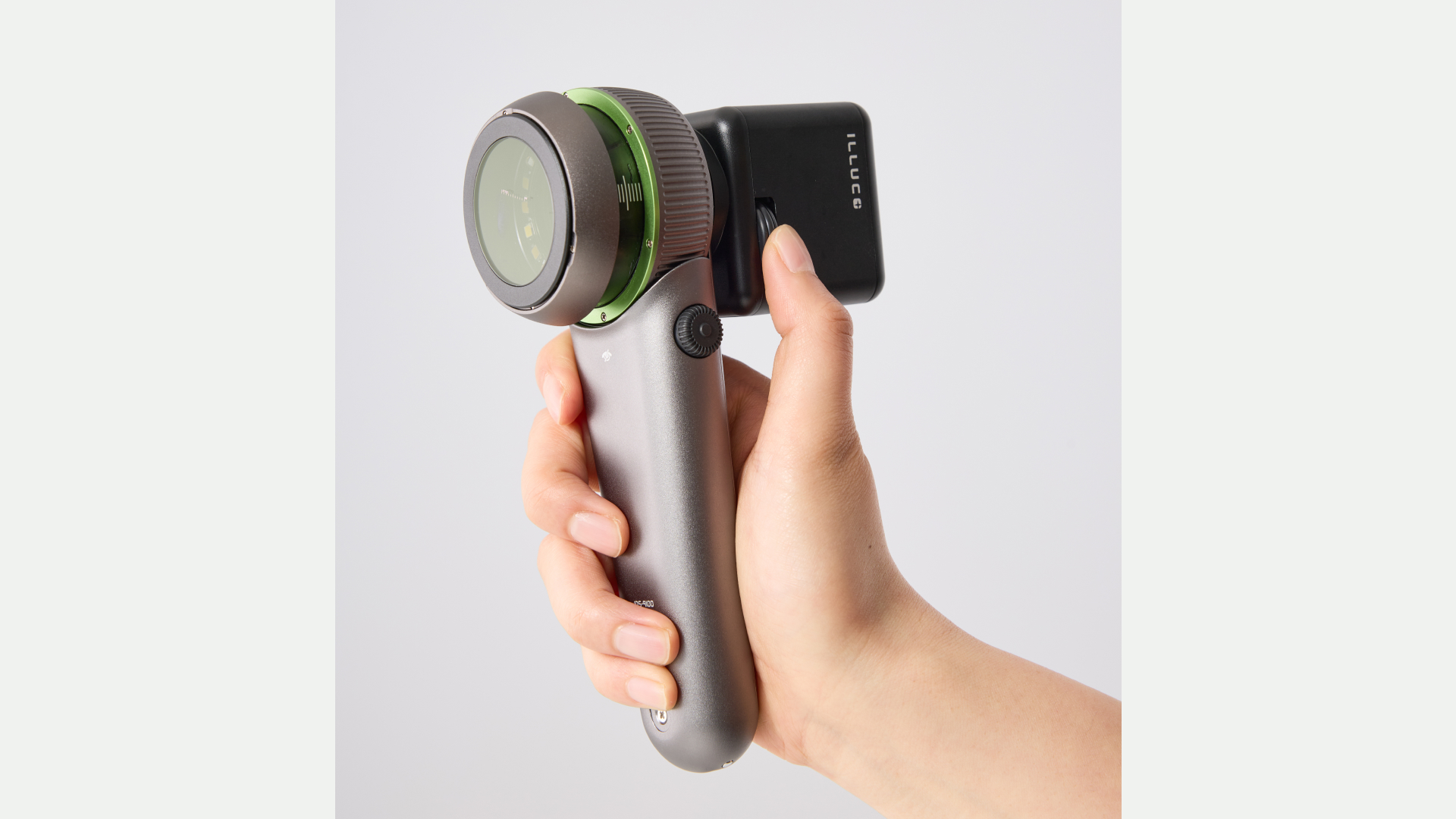

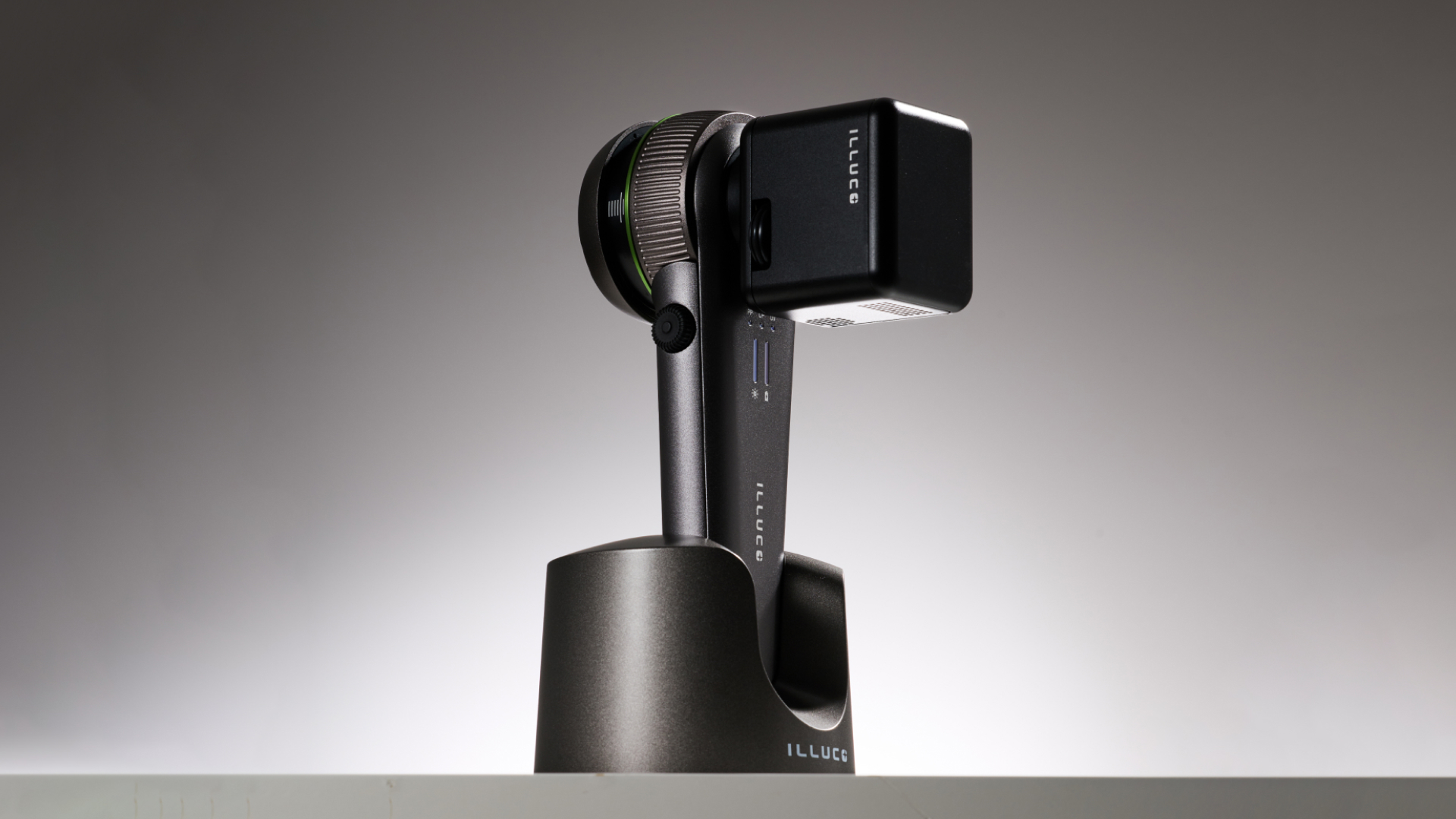

Capture What You See. Share What Matters. The IDC-1 Imaging Camera connects directly to the IDS Series dermatoscope, providing clear real-time images on a PC monitor. Capture photos, document clinical findings, and enhance patient communication with a simple USB connection. Portable design and intuitive operation make it ideal for everyday clinical use.

High-Resolution Imaging for Exceptional Clarity

IDC-1 features a premium 4K-class imaging module that captures highly detailed dermoscopic images. Visualize subtle skin structures with outstanding clarity and confidence.

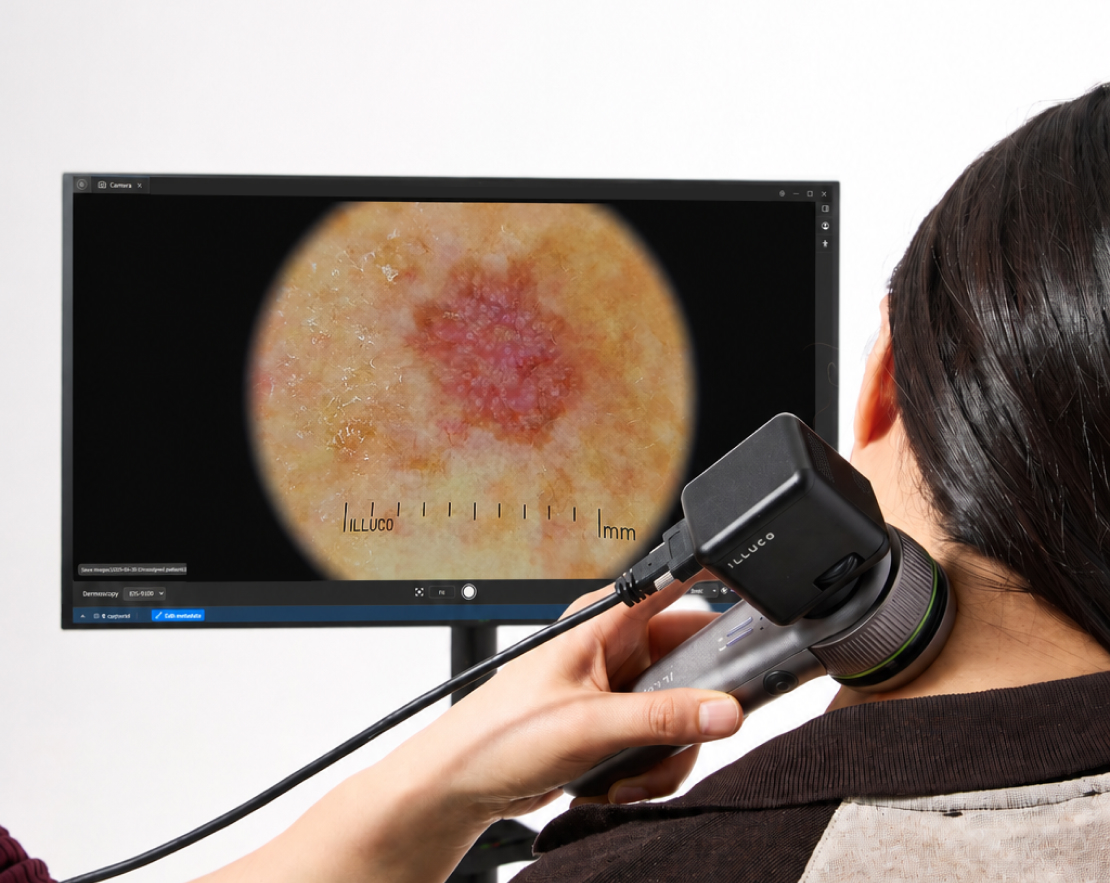

Real-Time Viewing and Patient Communication

Display live dermoscopic images instantly on a PC monitor through a stable USB 3.0 connection. Improve consultations and patient understanding with real-time visual communication.

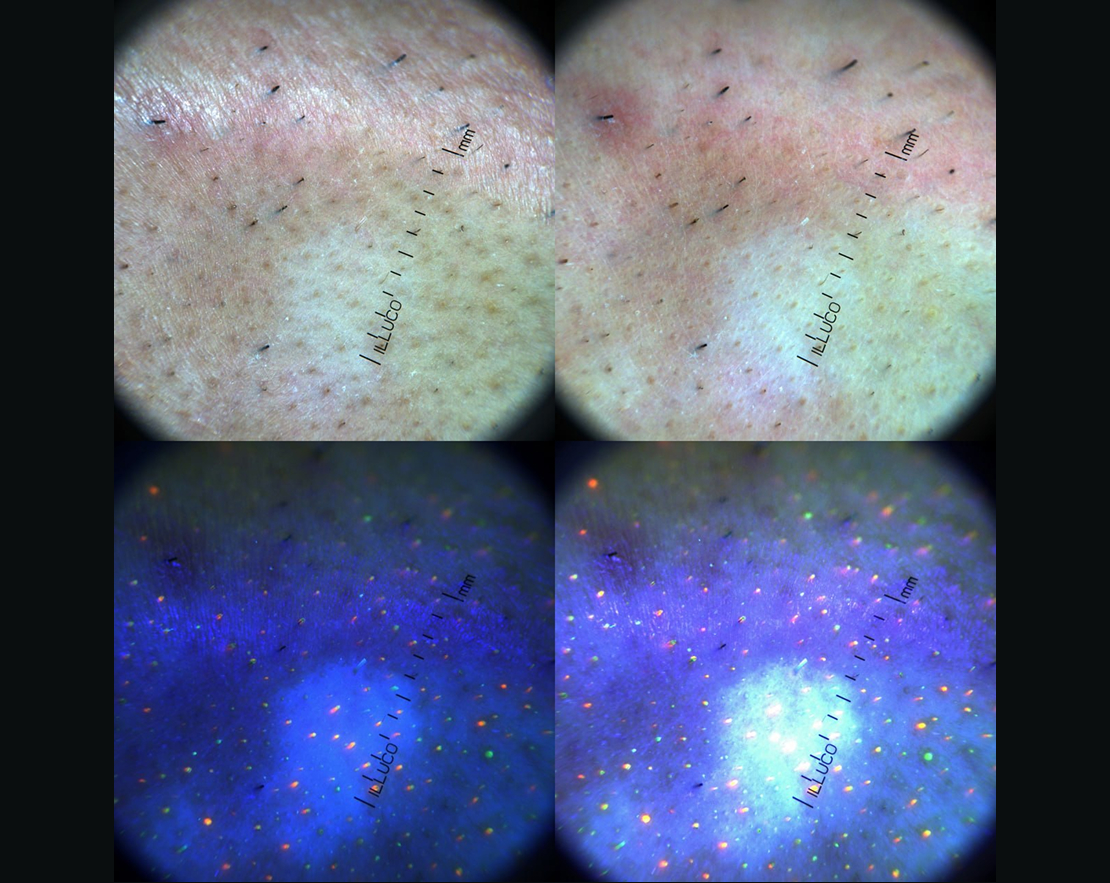

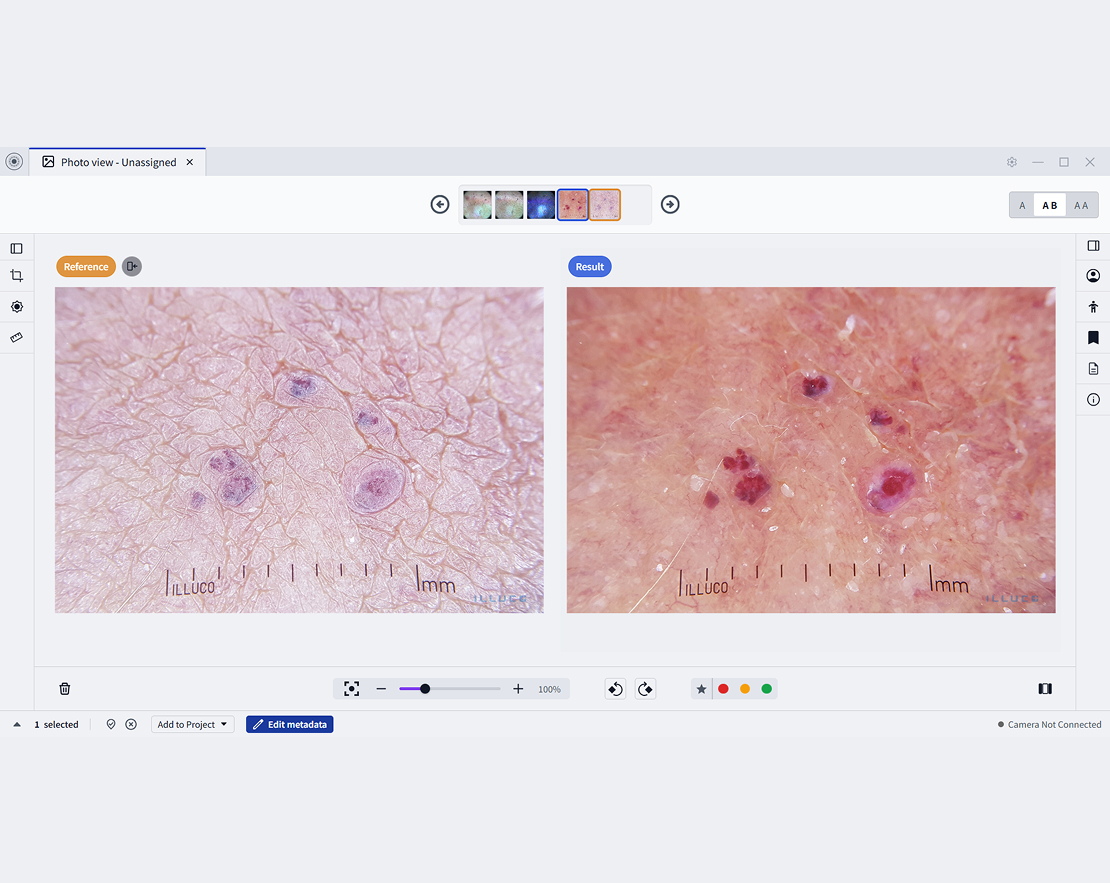

Image Comparison and Lesion Measurement

Monitor changes over time with side-by-side image comparison and lesion size measurement tools. Support more consistent documentation and follow-up evaluations.

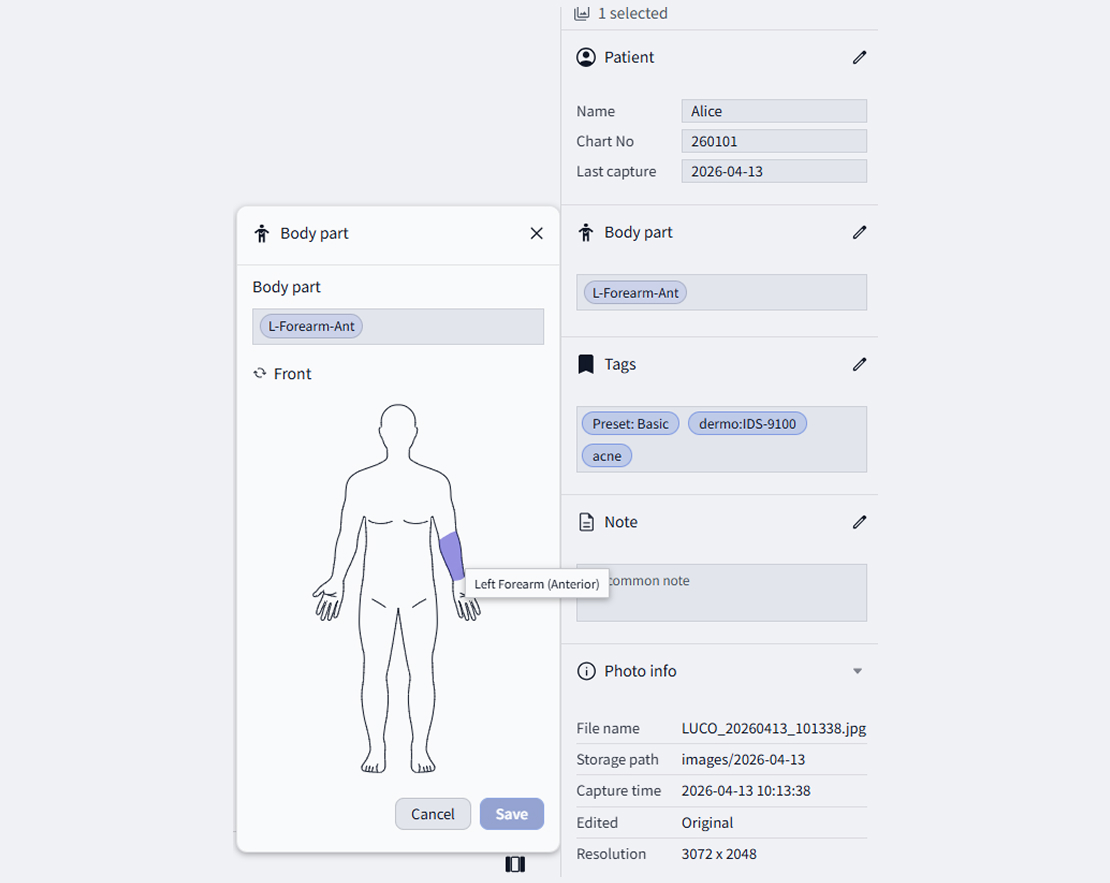

Complete Documentation Workflow

Capture, organize, and manage patient images with dedicated software. Store data directly on your clinic PC without subscription fees or cloud storage limitations.

DETAILS

SPECIFICATION

Optics
Magnification 3x digital zoom
Lens Type Glass with anti-reflection coating
Focal length 7.32mm
F-number (Fno.) 2.61
Focus manual focus
Sensor
Sensor Type CMOS rolling shutter
Sensor Model Sony IMX178
Sensor Size 1/1.8" (2.4μm x 2.4μm)
Resolution 3072 x 2048
Maximum frame rate 25fps
Compatibility
Interface USB 3.0
Operating system Windows 10 or later
Software LUCOCAM-DC
Supported image formats JPG
Housing
Housing material Aluminum alloy housing
Magnification lock No
Dimensions 52.5mm (L) x 24mm (D) x 56 (H)
Weight 140g
Cable length 3m, 5m(option)
